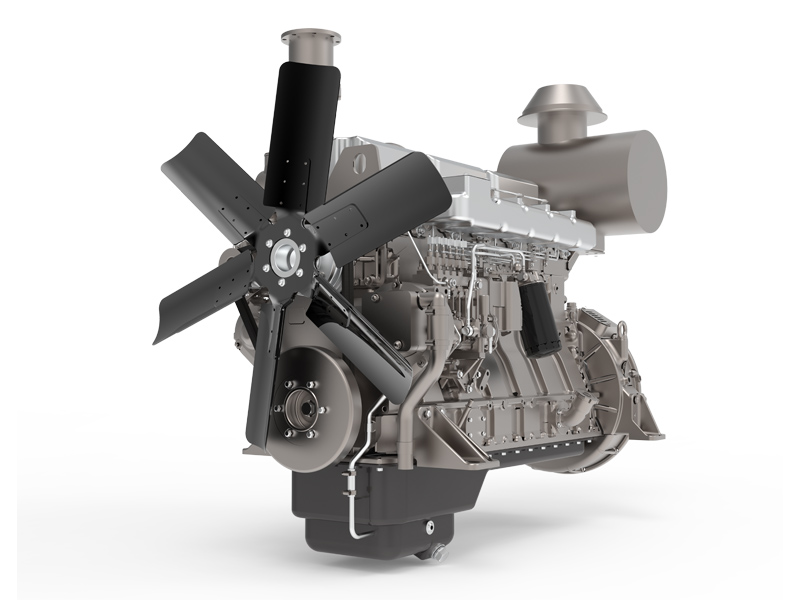

SC13G / SC15G Diesel Engine for Genset
SC13G / SC15G Diesel Engine for Genset SC13G / SC15G Diesel Engine for Genset SC13G / SC15G Diesel Engine for Genset

SC13G / SC15G Diesel Engine for Genset

Description

The SC13G/15G industrial diesel engine for commercial generators is a product featuring upgraded components on our G128 generator set engines. The upgrades have resulted in improved reliability, durability, efficiency, vibration, and noise output. The stroke of the SC15G has been extended to 165mm. Most components of this series of engine can be used with the original engine models. It is the first choice for matching the power for 280-684kW generator sets and it is manufactured according to SAIC Motor manufacturing standards.

Request a Quote
Model 12GTAA (27-G31-G34) SC13G (420D2) SC15G (500D2)
Type In-Line Type, Water-Cooled, 4-Stroke, Direct Injection, 4 Valves
Aspiration Turbo & Intercooler Turbo & Intercooler Turbo & Intercooler
Number of Cylinders×Bore×Stroke (mm) 12x135x155 6x135x150 6x135x165
Cylinder Liner Type Wet Liner Wet Liner Wet Liner
Compression Ratio 16:01 15.75:1 15.55:1
Displacement (L) 26.6 12.88 14.2
Speed Governing Rate (%) ≤5(Electronic Control) ≤5(Electronic Control) ≤5(Electronic Control)
Rated Power (kW) 459-622 280 330
Rated Speed (rpm) 1500 1500 1500
Standby Power (kW) 505-684 308 373
Min. Fuel Consumption
(g/kW.h) 		195 205 205
Exhaust Smoke (FSN) 0.3 1 1
Lube Oil Capacity (L) 55-65 33-41 33-41
Cooling System Capacity (L) 48 25.5 25.5
Engine Oil Consumption (g/kW.h) ≤0.3 ≤0.4 ≤0.4
Emission Standards Stage III Stage II Stage II
Noise (dB-A) 115 110 110
Net Weight (kg) 2200 1296 1296
Dimensions (L×W×H) (mm) 1930×1686×1872 1704×1063×1540 1704×1063×1540
Flywheel housing/ Flywheel SAE0# & 18# SAE1# & 14# SAE1# & 14#
  • The integral crankshaft is made of non-quenched and tempered steel, all the sealing gaskets are improved, and the injection pump features a direct connection by gear without a transmission shaft, thus improving the reliability.
  • The pump flow is increased and the pipeline design is optimized to reduce system resistance.
  • The flow of the engine oil pump and oil pressure are increased to improve the lubrication of internal components.
  • An oil-gas separator was added to the design and the thermostat is redesigned to be used in areas with different ambient temperatures.
  • Redesigning the fuel pipeline resulted in improving layouts of other peripheral pipelines and air filters. With this protection design, the layout is reasonable and the appearance is more industrial.
  • A cracking connecting rod makes it convenient to maintain.
  • This series engine satisfies Off-Road China II emission standards.
Typical Generator Capacity (kVA) Diesel Engine Model Engine Output (kW) Type
50Hz 60Hz 1500rpm 1800rpm Cylinder Flywheel & Housing Fuel System Emission
Prime
(PRP) 		Standby
(ESP) 		Prime
(PRP) 		Standby
(ESP) 		Prime Standby Prime Standby
312.5 343.75 / / SC13G420D2 280 308 / / L6 SAE 1#14# m-FIP+e-gov. CN II
375 412.5 / / SC15G500D2 330 373 / / L6 SAE 1#14# m-FIP+e-gov. CN II

Notes: m-FIP: mechanical fuel injection pump; e-gov: electronic governor
