Truck EGR (Exhaust Gas Recirculation) Engine

EGR, commonly known as an exhaust gas recirculation system, is the purification device for the nitrogen oxides NOx that is one of the hazardous gases exhausted by the engine. Due to this system, a small amount of exhaust gas generated by the truck EGR engine will go back to the cylinder to delay the combustion process. The total flow of exhaust gas is decreased so that the nitrogen oxides are reduced in the end. Then the emission standard is improved.

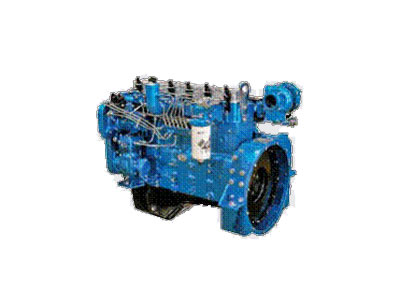

SC9DK (EGR) Exhaust Gas Recirculation Engine

Technical Specification
Model Unit EURO III, Euro III/Euro IV/Euro V
SC9DK240Q3B1 SC9DK270Q3B1 SC9DK290Q3B1 SC9DK310Q3B1
Type
In-line, mechanical pump, embedded EGR, TCI, water cooling wet cylinder liner, front gear housing
Bore ×Stroke mm 114×144
Total displacement L 8.8

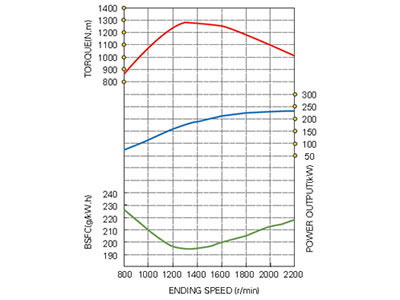

Rated power/rated speed kw/r/min 177/2200 199/2200 213/2200 228/2200
Maximum torque/speed N.m/r/min 922/1400 1125/1400 1160/1400 1250/1400
Min. fuel consumption g/kw.h ≤195
Noise dB(A) ≤97

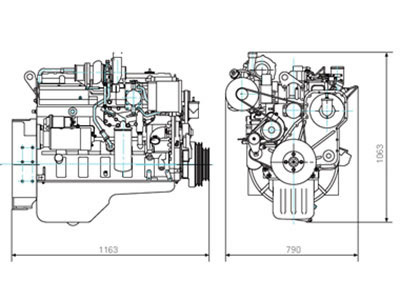

Overall dimension mm Length: 1163, Width: 790, Height: 1063
Net weight kg 800
Power range ps 240~310
EGR Technology Principle
Built-in EGR Reduce Nox
Delayed injection timing Reduce Nox
PZ-8500 pump for improving the injection pressure (140MPa) Reduce particles
Narrowed orifices Reduce particles
Diesel in accordance with China III standard Reduce particles

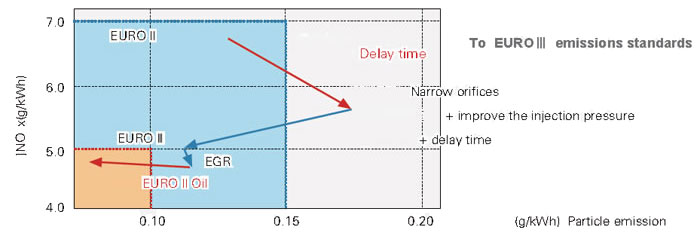

Technical Principle Diagram

Product Features
1.Low Cost
This truck EGR engine gets some slight changes based on the China II emission standard. The versatility rate of its parts exceeds 95%. The fuel injection system is similar to the inline pump that is consistent with the China II standard, not sensitive to the fuel products.

2. Low Fuel Consumption
There are 7 small orifices for fuel injection with high flow rate ranging from 1200 to 1400ml/min. This product gets the fuel atomized thoroughly and optimizes the timing performance of the intake valve. At the later stage of the intake stroke, the valve will be closed for getting the air in the cylinder expanded to reduce the temperature of the inner air properly, as well as the maximum combustion temperature. This is the working process of Miller Cycle Theory.

Through the EGR system in the cylinder, the inert gas is increased in the cylinder to inhibit the generation of NOx. Due to the inner EGR and Miller Cycle technology, the flow rate of the intake air is reduced, the combustion at low air fuel ratio comes true and the emission is decreased successfully.

3. Low Maintenance Cost
This truck EGR engine is same as the diesel engine of China II standard in several aspects, such as the operation, repair and maintenance.

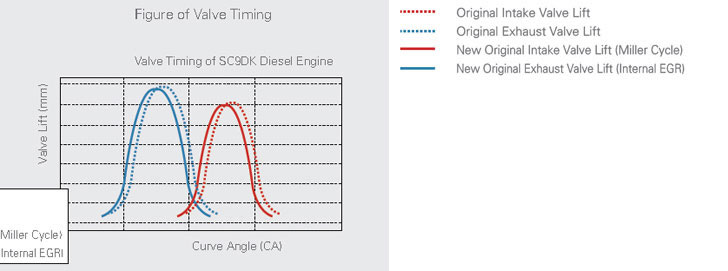

Figure of Valve Timing for SC9DK Diesel Engine
